A Guide to Industrial Fittings and Their Applications

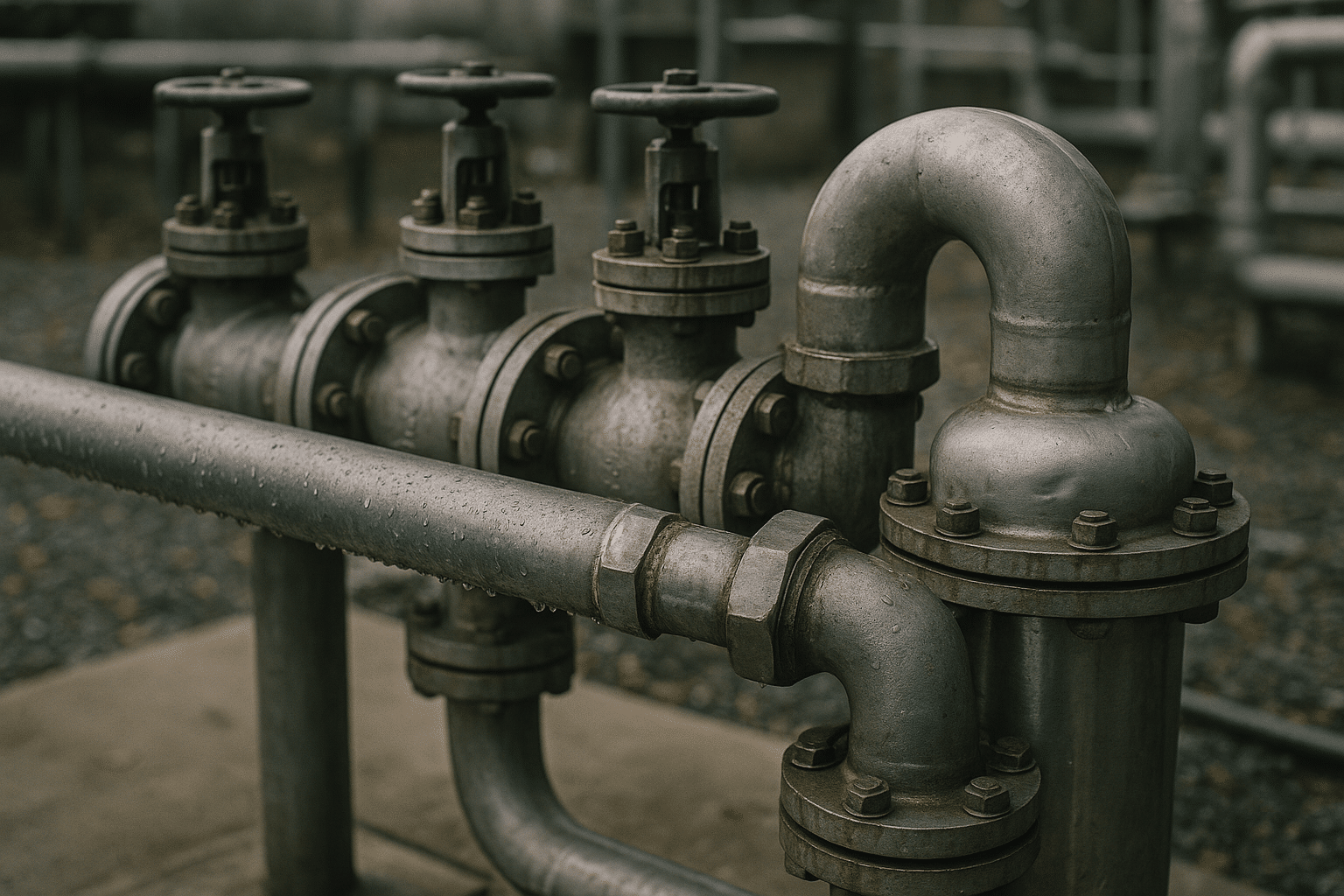

What Industrial Fittings Do: Functions, Types, and Standards

Industrial fittings enable controlled transitions in pressure, direction, and connection without compromising integrity. At their core, they perform five recurring functions: connect line segments, change direction, adapt sizes, terminate or isolate, and interface with equipment. That translates into elbows, tees, reducers, couplings, unions, flanges, caps, plugs, and specialty connectors that bridge to valves and instruments. A fitting’s geometry modifies flow: small radii increase turbulence and pressure drop; long-radius bends and streamlined reducers preserve energy. This is why layout choices upstream of pumps, meters, or control elements are not academic—they influence accuracy, wear, and energy consumption.

Connection styles define how a fitting seals. Threaded joints suit moderate pressures and are common in utility and instrumentation runs, while welded connections prioritize permanence and leak avoidance in critical services. Flanged joints simplify maintenance and allow equipment removal; clamp-style sanitary connectors speed cleaning in hygienic systems; grooved mechanical couplings absorb movement and facilitate rapid assembly on large lines. Typical pressure classifications for metallic fittings span low to very high service, with classes often grouped from modest ratings used in building services to heavy-duty ratings for energy and process sectors. Choosing too high a rating can inflate cost and weight; underspecifying invites leaks and fatigue failures.

Standards bring compatibility and predictability. Nominal sizes, wall thicknesses, and pressure classes align across components so that a 2-inch elbow mates with a 2-inch tee regardless of supplier. Tapered threads rely on deformation and sealant; parallel threads require a gasket or bonded washer; ferrule compression systems create a mechanical grip on tube OD; cam-and-groove styles enable quick coupling and uncoupling for transfer hoses. In emissions-conscious operations, audits frequently show that a large share of fugitive releases originate at connections, not straight pipe. That reality elevates the humble fitting from a commodity to a risk control point, where smarter selection, better assembly, and disciplined maintenance pay off in safety, compliance, and uptime.

Materials and Coatings: Corrosion, Temperature, and Compatibility

Material choice is chemistry translated into hardware. The wrong alloy in chloride-rich brine or the wrong polymer near hot solvents can turn a tidy line into a maintenance headache. Carbon steel offers strength and economy, performing well in noncorrosive services and elevated temperatures when protected from moisture; however, bare carbon steel is vulnerable to rust in humid or wet environments. Austenitic stainless grades bring notable corrosion resistance and handle a wide temperature range, though they can suffer pitting in high-chloride media and stress corrosion in certain conditions. Duplex stainless adds strength and improved chloride resistance for brackish and seawater duties. Bronze and other copper-based alloys resist biofouling and are often selected in marine and cooling-water contexts, while nickel-bearing alloys extend survivability in strong acids and high-temperature oxidizing environments.

Nonmetals widen options where corrosion or cleanliness dominates. PVC and CPVC are widely used in ambient to moderately hot water and many chemicals; CPVC expands temperature capability compared with PVC. Polypropylene and PVDF provide improved chemical resistance and higher temperature limits among thermoplastics. PTFE stands out for chemical inertness and service up to roughly 260 °C, appearing in lined fittings and gasket faces where aggressive chemistry meets elevated heat. Each polymer imposes its own mechanical constraints: lower tensile strength than metals, creep under sustained load, and sensitivity to UV unless stabilized. These trade-offs often make polymer fittings excellent for corrosion resistance but less suitable for shock, vibration, or high external loads without support.

Coatings and linings adapt base materials to their environments. Common strategies include:
– Zinc-rich galvanic coatings for general atmospheric corrosion delay
– Fusion-bonded epoxy for buried and submerged service
– Elastomeric or fluoropolymer linings where contact surfaces must resist aggressive media
– Ceramic-filled coatings to withstand erosive slurries at elbows and reducers

Thermal limits, diffusion rates, and permeation matter. For example, elastomer gaskets can harden with heat or swell in aromatic hydrocarbons; improper selection leads to creep and retightening cycles. Galvanic coupling should also be considered: pairing dissimilar metals in a conductive liquid can accelerate attack on the less noble component. Practical guardrails help: match materials to the most severe credible condition, not the average; confirm compatibility against the actual fluid (including trace contaminants); and specify coatings for the environment around the pipe, not just the fluid inside. Doing so reduces unplanned downtime and extends inspection intervals without overbuilding the system.

Sizing and Selection: Pressure, Flow, Threads, and Sealing

Selection begins with process data. Define the fluid, minimum and maximum temperature, normal and upset pressures, and any solids or gas entrainment. With that, establish pipe or tube size and schedule; remember that “2-inch” does not equal 2.000 inches of inside diameter—nominal sizing hides wall thickness differences that influence flow area and velocity. Fittings add local losses, often expressed as K-factors or equivalent lengths. As a rule of thumb, tighter bends and sudden contractions raise K; long-radius elbows and concentric reducers moderate it. When energy use or pump margin is tight, accounting for these losses avoids undersized equipment and cavitation issues.

Threads, flanges, and compression systems each solve different problems:
– Tapered threads seal with thread interference plus sealant; they are quick and compact
– Parallel threads rely on a gasket or bonded washer; they resist over-tightening better
– Flanges use gaskets and bolt preload; they ease maintenance and alignment
– Ferrule compression fittings grip the tube OD; they provide excellent sealing on instrumentation lines
– Grooved couplings allow some angular deflection and thermal movement; they speed large-diameter assembly

Sealing media must match the duty. Common choices include tape and paste for tapered threads, fiber and elastomer sheet for flat-faced joints, spiral-wound and metal-ring styles for high pressure and temperature, and PTFE-based materials for aggressive chemistry. Consider oxygen service cleanliness, hydrocarbon compatibility, and the risk of explosive decompression in elastomers when cycling pressure. For pneumatic lines, remember that small leaks are energy leaks; even a few standard liters per minute at multiple joints can translate to significant compressor runtime over a year.

A miniature example illustrates the stakes. Suppose a water line at 20 °C, 2-inch nominal, carries 20 m³/h. Swapping a pair of tight-radius elbows (higher K) for long-radius elbows can trim several kilopascals of loss. That small change might allow a lower pump speed, saving energy and reducing noise. Seemingly minor details—thread form, gasket style, surface finish—stack up across dozens of joints. A robust selection workflow looks like this:
– Define service envelope (fluid, P-T, solids, cleanliness)
– Choose connection style aligned with maintenance philosophy
– Size with allowances for local losses and future expansion
– Select materials and sealing media for both internal fluid and external environment
– Document torque, assembly sequence, and test plan up front

Installation, Testing, and Maintenance: Doing It Right and Keeping It Tight

Installation quality often determines life-cycle performance more than the catalog specification. Clean, align, and support: these three steps prevent the mischief that causes early leaks. Deburr cut ends, remove oil and debris, and protect sealing faces. Bring pipes into accurate alignment so fittings do not act as unintended springs. For tapered threads, apply a sensible amount of sealant—too little invites leakage; too much risks contamination or thread cracking. For flanges, use a controlled, star-pattern bolt-up with incremental torque and a final pass; aim for uniform gasket compression. For compression systems, follow the prescribed turn-from-finger-tight or torque method; over-tightening can distort ferrules and under-tightening leaves a path for leakage.

Testing validates that the joint you built is the joint you intended. Hydrostatic testing is common for liquid systems and typically uses a test pressure above the design pressure with a safety margin; pneumatic testing uses lower multipliers because compressed gas stores more energy. When using air or inert gas, add a compatible leak-detection fluid at suspect joints and watch for bubbles; in clean rooms, ultrasonic detectors pick up faint leak signatures without wetting surfaces. For vacuum and high-integrity gas service, tracer-gas sniffing and pressure-decay methods add sensitivity. Record results alongside torque values, gasket type, and environmental conditions; that traceability shortens fault-finding later.

Maintenance is where small habits pay outsize dividends. Implement inspection routes that specifically target:
– High-vibration points near rotating equipment
– Thermal cycling zones near heat exchangers or outdoor runs
– Corrosion under insulation and at low points where condensate collects
– Elastomeric gaskets in hot or chemical service that may age faster
– Temporary connections that have become semi-permanent

Keep spares organized by size, pressure rating, and material, and quarantine damaged seal faces and dinged threads. Periodic retorque on selected flanged joints after thermal cycles can stabilize gasket creep, but only if procedures are documented. For hygienic systems, adopt clean-in-place validation and gasket lot traceability to meet audit expectations. For outdoor assets, refresh coatings where chips expose bare metal and ensure supports still carry the load rather than the joints. Above all, couple these practices with training: a short toolbox talk on proper tape application or bolt-up sequence can prevent a week’s worth of headaches and an avoidable shutdown.

Applications and Comparisons: Choosing for Oil and Gas, Water, Food, Pharma, and HVAC

Different industries prize different virtues in their fittings. In upstream and refining services, pressure and temperature combinations push toward welded connections, high-integrity gasket styles, and materials tolerant of sour or corrosive streams. Where periodic disassembly is needed—filters, exchangers, or metering sets—flanged joints and unions provide access without cutting pipe. In midstream and terminals, quick hose connections with positive locking are useful for transfer operations, but they must carry clear tags, dust caps, and check elements to prevent cross-contamination.

Municipal water and wastewater networks often emphasize speed of installation, movement accommodation, and corrosion protection. Grooved couplings allow for thermal growth and seismic resilience on large-diameter mains, while epoxy coatings counter soil-side corrosion. In treatment plants, polymer fittings and lined steel stand up to disinfectants and pH swings. Food and beverage facilities prioritize cleanability and rapid changeover; clamp-style sanitary fittings with smooth bores, elastomer gaskets approved for the duty, and polished contact surfaces help prevent biofilm formation and simplify visual inspection. Pharmaceutical production tightens those requirements further with surface finish targets, drainability, and full material traceability; here, welds dominate product-contact paths, with fittings used at utility interfaces and instruments.

HVAC and building services juggle cost, speed, and noise. Threaded and press-type connectors on copper or steel can shrink installation time, but vibration isolation and support placement determine long-term quiet operation. Where glycol mixes, oxygen ingress, or dissimilar metals appear, monitor for galvanic cells and specify compatible materials. Chemical processing plants, finally, highlight compatibility above all else: fluoropolymer-lined fittings tame aggressive acids; alloy selections reflect not just the main reactants but also impurities and cleaning solvents.

Practical comparisons help frame choices:
– Speed: grooved and clamp styles assemble quickly; welded and flanged take longer but offer higher integrity or reusability
– Cleanability: clamp sanitary connections and smooth-bore reducers excel; threaded crevices require care
– Scalability: flanges and unions simplify equipment swaps; welded spools suit permanent layouts
– Cost of failure: high-energy lines justify heavier materials and gasket systems; low-risk utilities can use economical options

Consider a maintenance scenario: a facility has 50 small-bore threaded joints on a compressed air header that weep under cyclic load. Converting the highest-stress ten joints near a compressor to compression fittings and adding proper supports might reduce leak rate by a measurable margin, easing compressor duty and trimming power. A similar logic applies across sectors: place stronger, more resilient fittings where the consequences of leakage are higher, and keep simpler, rapid-assembly options where access and speed matter most. Over time, that targeted approach reduces energy consumption, operator interventions, and spare parts churn.
